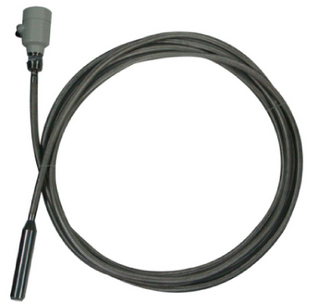

Multipoint Temperature Sensor
CMT539
The CMT532 is an economy multipoint temperature sensor which is applicable for Crude oil, product oil storage multipoint temperature, average temperature.
Application
  • Suitable for all industries
  • Process reactors with low or high pressure
  • Storage tank
Features
  • Applicable for various device with HART,RS485, MODBUS.
  • Read the level value via HART or MODBUS protocol and output average temperature in 4~20mA.
  • Connectable to most of known instrument systems from known brand manufacturers, like VEGA, E+H, Rosemount, Honeywell Enraf.
  • Measuring point up to 30.
  • Integrated with signal converter of average temperature and tank bottom level sensor.
  • Can be adjusted by HART communicator.
  • Mounting height is adjustable.
Specifications
    Range: 30M
  • Probe material: 316SScoiled tube +316SS mesh jacket
  • Process connection: thread or flange
  • Process temperature: -55°C…120°C
  • Process pressure: -1…2Mpa
  • Accuracy : ±0.3°C
  • Thermometer element: Digital sensor
  • Thermometer point: ≤30
  • Power supply: 16V…30VDC
  • Power consumption: <4mA
  • Signal output: MODBUS/HART
  • Height adjustment: ±150mm
  • Protection: IP67
  • Ex proof: ExiaIIBT4
